Sheet Resistance Measurement

Sheet Resistance Measurement

Sheet resistance monitoring is critical to any industry that utilizes conductive films, from semiconductor manufacturing to the flexible electronics required to enable wearable technology. The Filmetrics® R-series sheet resistance measurement instruments have been developed based on over 45 years of KLA sheet resistance measurement innovation. Since the introduction of our first resistivity gauge in 1975, we have revolutionized both sheet resistance measurement and thickness measurement for conductive layers. The new Filmetrics R170 adds automated wafer handling and SECS/GEM to provide fully automated sheet resistance measurements for 200mm and smaller samples for semiconductor and compound semiconductor manufacturing.

Filmetrics® R170 Sheet Resistance Mapper

Sheet resistance process control is critical to any industry that utilizes conductive films, including semiconductor and compound semiconductor manufacturing. The Filmetrics R170 is the latest innovation in KLA sheet resistance and conductivity mapping systems. The automated R170 design represents a culmination of over 45 years of sheet resistance technology leadership.

Learn more

sheet resistance mapping instrument

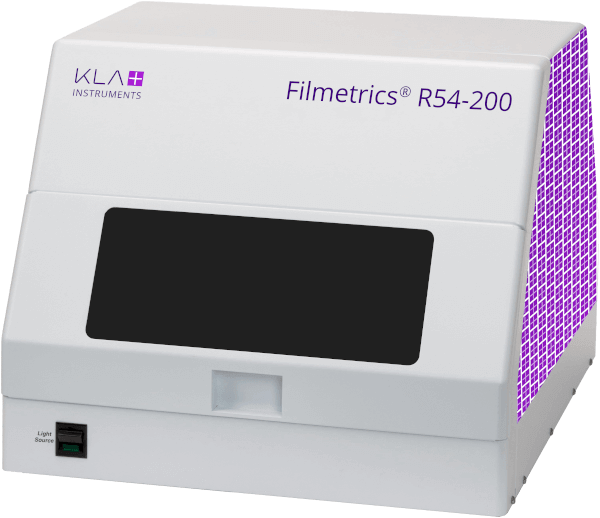

Filmetrics® R54-200 Sheet Resistance Mapping System

The Filmetrics R54-200 advanced sheet resistance and conductivity mapping systems deliver R50 performance capability within a light-tight enclosure with additional capability to support semiconductor and compound semiconductor applications, including implant and epitaxial wafers.

The Filmetrics R54-200 can be configured as either direct four-point probe (R54-200-4PP) or non-contact eddy current system (R54-200-EC) and is compatible with all KLA sheet resistance probes.

sheet resistance mapping instrument

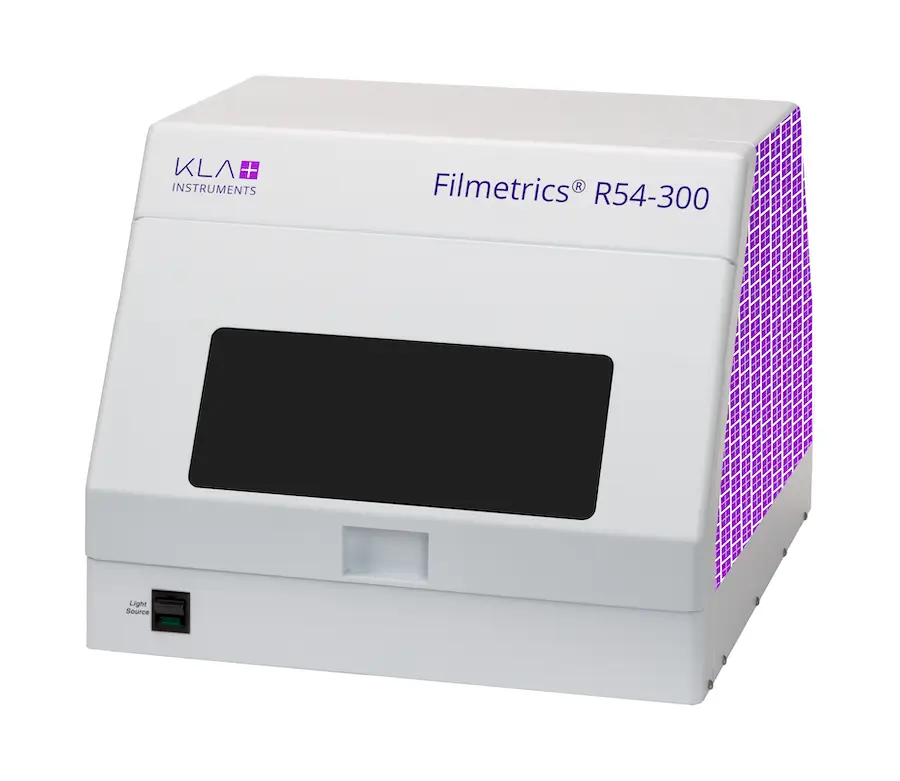

Filmetrics® R54-300 Sheet Resistance Mapping System

The Filmetrics R54-300 advanced sheet resistance mapping system configuration maintains the small footprint of the 200mm system by employing a high precision X-Y-θ stage for superior edge exclusion and high-density mapping. The R54-300 delivers process optimization metrology in a compact benchtop package.

The Filmetrics R54-300 can be configured as either direct four-point probe (R54-300-4PP) or non-contact eddy current (R54-300-EC).

Filmetrics R50-4PP Sheet Resistance Mapper

Filmetrics® R50-4PP Four-Point Probe System

The Filmetrics R50-4PP contact four-point probe system maps metal layer thickness, sheet resistance, sheet resistivity, sheet conductance, and sheet conductivity. The 10-decade measurement capability and large Z range make the R50-4PP ideal for a wide variety of applications.

The Filmetrics R50-200-4PP is also available to accommodate larger sample sizes.

Filmetrics R50-EC Sheet Resistance Mapper

Filmetrics® R50-EC Eddy Current System

The Filmetrics R50-EC non-contact eddy current system maps metal layer thickness, sheet resistance, sheet resistivity, sheet conductance, and sheet conductivity. The non-contact eddy current sheet resistance measurement is ideal for measuring resistance and film thickness on sensitive and/or flexible conductive surfaces.

The Filmetrics R50-200-EC is also available to accommodate larger sample sizes.

Looking for sheet resistance measurement tools for semiconductor chip manufacturing?

View More

Technical Literature

Browse application notes and technical papers from KLA Instruments Application Engineers and customers, covering a variety of use cases for KLA Instruments products.

Explore



Timeline of Innovation

Our history of innovation and deep expertise have built a broad portfolio of measurement and inspection solutions that address every requirement and environment. See how it all started from the inception of the Alpha-Step® product line in 1977 through our latest product innovations.

Learn More

Learn More

Receive the latest KLA Instruments news, papers, events, and more

Instruments Form
Data Transfer *
Marketing *

Follow KLA Instruments

Follow KLA Instruments to engage with our experts and learn about our tool applications.

Learn how our products can help you.

Explore More Solutions

KLA Instruments Logo

Instruments

For industry experts, academics and other innovators, KLA Instruments delivers trusted metrology and defect inspection solutions that provide measurements that enable the world’s breakthrough technologies.

Filmetrics R50-EC Sheet Resistance Mapper

Defect Inspectors

The Candela® inspection systems for compound semiconductors and hard disk drives can help engineers achieve significant yield and process improvements, in applications spanning communications and networking, LEDs, power devices, sensing, solar, photovoltaics and data storage.

Filmetrics R50-EC Sheet Resistance Mapper

Nanoindenters

The KLA Instruments nanoindenter portfolio provides precise, reliable and repeatable testing to characterize static and dynamic mechanical properties of materials, under a wide range of test conditions.

Filmetrics R50-EC Sheet Resistance Mapper

Optical Profilers

The Profilm3D® and Zeta optical profilometers offer fast, non-contact solutions for 3D step height, roughness, and other surface topography measurements; metrology tools leveraging interferometer and ZDot measurement techniques.

Filmetrics R50-EC Sheet Resistance Mapper

Stylus Profilers

The Alpha-Step®, Tencor® P-series and HRP® stylus profilometers enable high-precision, 2D and 3D surface metrology. The stylus profilers measure step height, roughness, bow and stress with industry-leading stability and reliability for your R&D and production metrology requirements.

Filmetrics R50-EC Sheet Resistance Mapper

Thin-Film Thickness Reflectometers

The Filmetrics® thin-film reflectometers provide thickness and refractive index measurements of transparent films in seconds, with industry-leading precision.
