Candela® defect inspection systems detect and classify a wide range of critical defects on compound semiconductor substrates (GaN, GaAs, InP, sapphire, SiC, etc.) and hard disk drives, with high sensitivity at production throughputs.

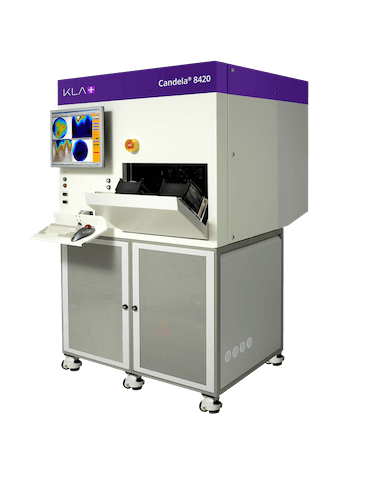

Candela 8420 Surface Defect Inspection System

Optical Surface Analyzer (OSA) for tool and process monitoring, through surface defect detection and classification of surface defects including particle, stains, scratches and macro epi defects for photonics, LED, communications and other compound semiconductor applications.

Learn more

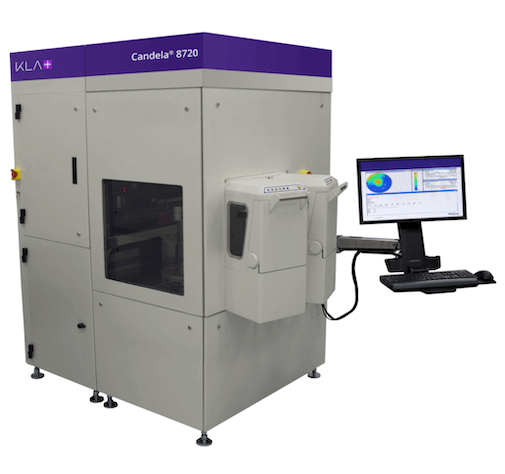

Candela 8720 Surface Defect Inspection System

High sensitivity wafer inspection tool, integrating surface defect detection and photoluminescence metrology for GaN applications in HBLED, MicroLED, VCSELs, LiDAR, IoT, 5G and other high-end compound semiconductor applications.

Learn more

Candela 8520 Surface Defect Inspection System

High sensitivity, high throughput wafer inspection tool, with integrated surface scattering and photoluminescence technology for defect detection and classification of topographic and crystallographic defects on SiC and GaN based power devices.

Learn more

ZetaScan 800 Defect Inspection System

Low-cost inspection tool designed for defect detection and classification of defects on square or round GaAs, glass and sapphire wafers for solar, PV and display applications.

Learn more

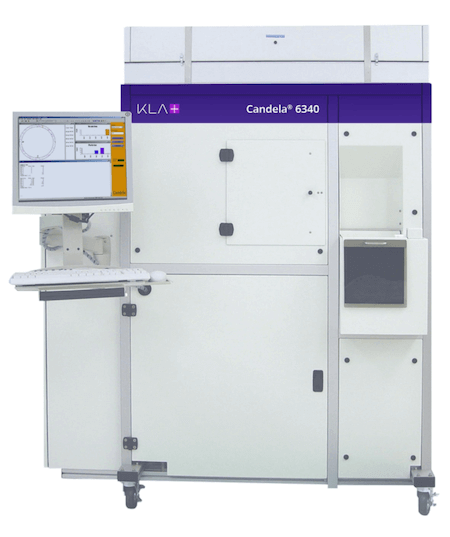

Candela® 6300 Series Optical Surface Analyzer Systems

Laser based inspection system for hard disk drive (HDD) substrates that measures full disk surface topography, micro-roughness and waviness, and inspects the wafer surface for defects. The automated model, Candela 6340, includes disk cassette-to-cassette handling.

Learn more

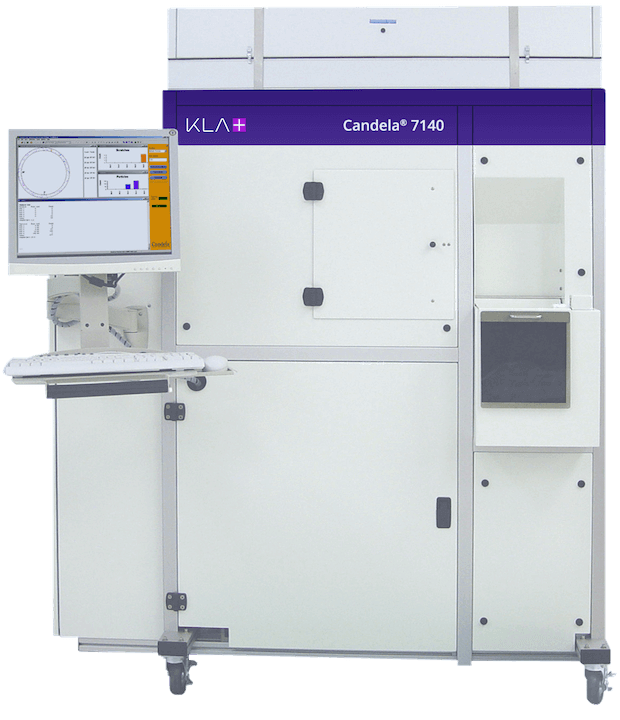

Candela® 7100 Series Defect Detection and Classification System

Laser based inspection system for high sensitivity surface defect inspection of hard disk drive (HDD) substrates and media, featuring multiple optical paths for classification of submicron pits and particles. The automated model, Candela 7140, includes disk cassette-to-cassette handling.

Learn more

Looking for wafer defect inspection and review systems for semiconductor chip and wafer manufacturing?

View More

Technical Literature

Browse application notes and technical papers from KLA Instruments Application Engineers and customers, covering a variety of use cases for KLA Instruments products.



Timeline of Innovation

Since the launch of the Candela Optical Surface Analyzer (OSA) in 1997, our technical experts have continued to introduce key innovations in defect sensitivity and classification for the compound semiconductor and data storage markets. Our inspection technology provides performance improvements with each new product release, including our industry-first, award-winning ability to combine high-speed surface defect detection and photoluminescence metrology on a single platform. Learn more about the rich history of innovation of our Candela defect inspectors.

Learn More
