Tencor® Stylus Profilometers

Tencor® Stylus Profilometers

KLA Instruments™ Alpha-Step® stylus profilometers, Tencor® P-series stylus profilometers and HRP®-series stylus profilometers deliver high-precision, 2D and 3D surface metrology, measuring step height, surface roughness, bow and stress with industry-leading stability and reliability for your R&D and production requirements.

Upcoming Event

View All


KLA is proud to be a continuing Platinum sponsor and exhibitor at SEMICON West. We invite you to visit our experts at booth 833 to learn more about our sheet resistance mappers, contact and non-contact profiler and thin-film measurement

Event Date July 9 - 11, 2024
Location Moscone Center, San Francisco, CA
Booth 833

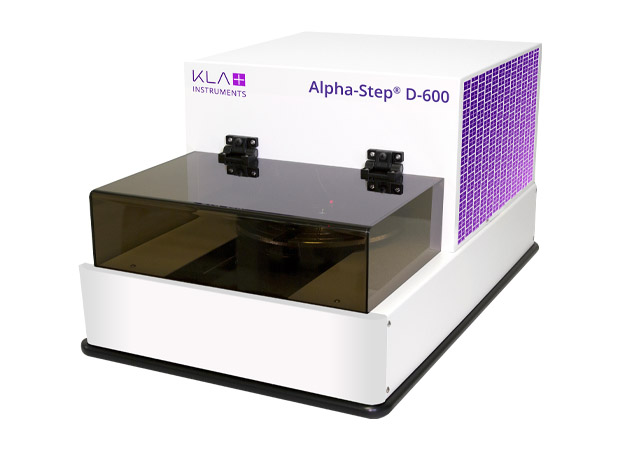

Alpha-Step D-600 Stylus Profiler

Alpha-Step® D-600 Stylus Profiler

The Alpha-Step D-600 stylus profiler adds a motorized X-Y stage to the Alpha-Step technology, enabling automated mapping of 2D and 3D step height, surface roughness measurements, plus 2D bow and stress.

Learn more

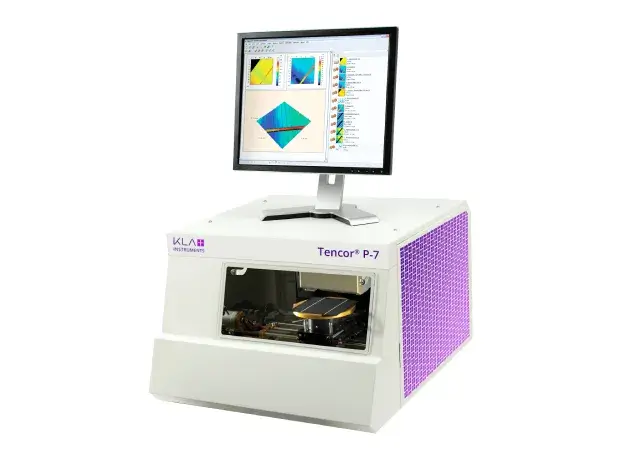

Tencor® P-7 Stylus Profiler

The Tencor P-7 stylus profiler leverages the industry-leading topography sensor and ultra-flat scanning technology of the Tencor P-17 in a platform that offers the best price to performance for a benchtop stylus profiler.

Learn more

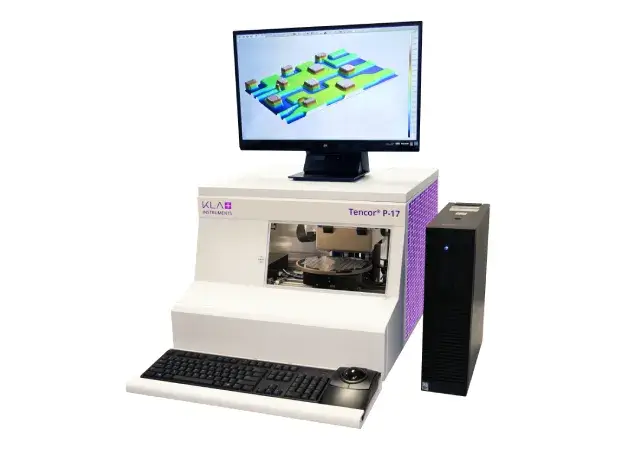

Tencor® P-17 & Tencor® P-17 OF Stylus Profilers

The industry-leading Tencor P-17 is the latest generation benchtop stylus profiler built on over 45 years of surface metrology experience, providing precise 2D and 3D step height and surface roughness measurements for R&D and production environments.

Learn more

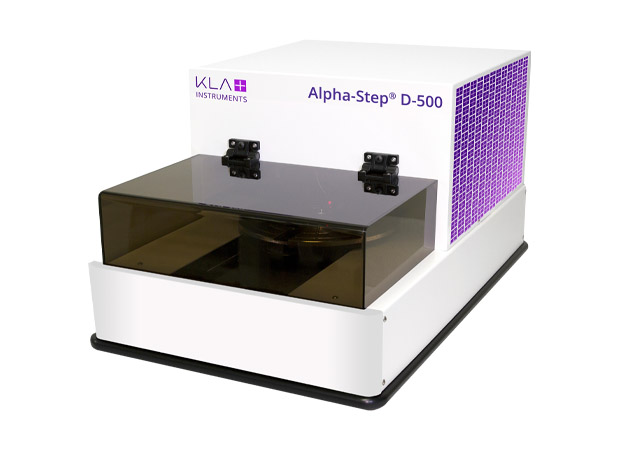

Alpha-Step D-500 Stylus Profiler

Alpha-Step® D-500 Stylus Profiler

The Alpha-Step D-500 is an affordable, easy-to-use benchtop stylus profiler with a manual X-Y stage for 2D step height and surface roughness measurements for both lab and production environments.

Learn more

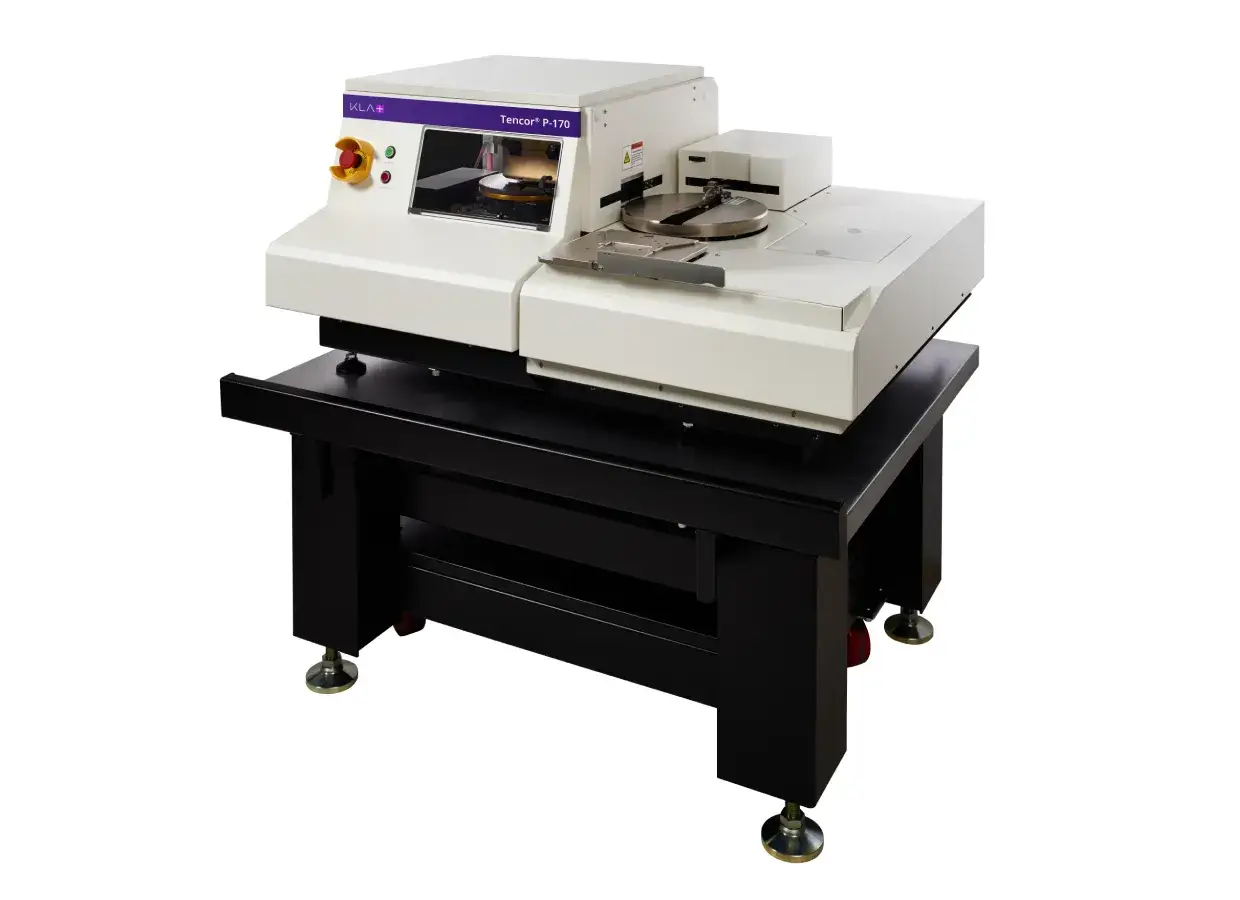

Tencor® P-170 Stylus Profiler

The Tencor P-170 stylus profilometer enables fully automated measurements for the compound semiconductor industry, supporting cassette-to-cassette wafer handling including silicon, sapphire, silicon carbide, gallium arsenide, glass and more.

Learn more

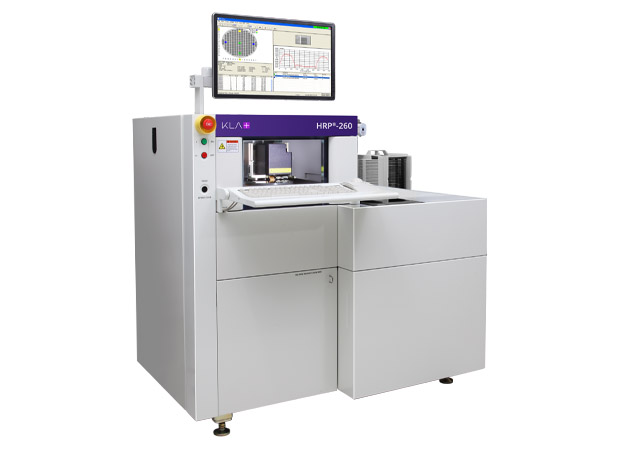

HRP-260 Stylus Profiler

HRP®-260 Stylus Profiler

Built for high throughput and the reliability required in a production environment, the HRP-260 stylus profilometer combines high resolution, long scan capability and cassette-to-cassette wafer handling.

Learn more

Looking for optical surface profilometers?

View More

Technical Literature

Browse application notes and technical papers from KLA Instruments Application Engineers and customers, covering a variety of use cases for KLA Instruments products.



Timeline of Innovation

Since the launch of the Alpha-Step 100 stylus profilometer in 1977, our technical experts have continued to bring key innovations such as advanced topography sensors, ultra-flat scanning stages and fully automated measurement capability to market. Our tools continue to evolve, providing repeatable and accurate measurements for your surface metrology requirements. Learn more about the rich history of innovation of our stylus profilers.

Learn More
